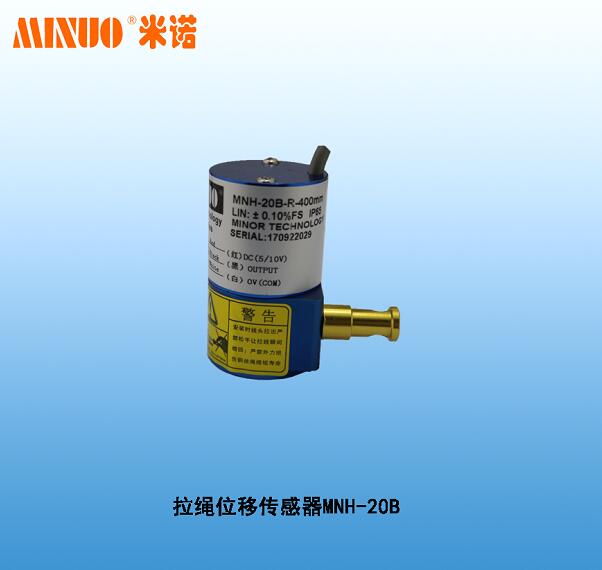

Draw Wire Sensor MNH-20B
Click：
Draw Wire Sensor MNH-20B
| SORT | TECHNICAL PARAMETERS | ||||
| Signal output form | Digital output P G | Analog output V/MA/R G | |||
| Output characteristics | TL liquid / square wave | Voltage（V）：0-5v,0-10v,1-5v | |||
| Parallel output,Serial,ssi Port,MHz,profibus,CanOpen | Current（MA)：4-20mA,0-20mA | ||||
| RS485 | Resistance（R):0-5kΩ,0-10KΩ,others | ||||
| Supply Voltage | DC5V,DC5-24V | DC5-24V, DC12V,DC24V | |||
| Measure stroke | 500mm | 400mm | |||
|
Maximum speed reciprocating |
600 | 600 | |||
| Definition | 0.004、0.005、0.01 others | Nature of infinitesimal | |||
| Measurement wire | Φ0.6 | Φ0.6 | |||
| Linearity | 0.05%FS | 0.1%FS | |||
| Pull material | Stainless steel | Stainless steel | |||
| Work force | About 5N | About 5N | |||
| Operating temperature | -25℃～+85℃ | -25℃～+85℃ | |||
| Storage temperature | -35℃～+95℃ | -35℃～+95℃ | |||
| Weight | 500g | 500g | |||
| Useful life | >1×106 | >1×106 | |||
| Protection grade | IP54 (Criterion) | IP54 (Criterion) | |||
| MN-40-P |
Measurement range |
resolution |
Output characteristics |
Supply voltage |
Incremental type |
| MN-40-V/MA/R |
Measurement range |
Nature of infinitesimal |
Output characteristics |
Supply voltage |
Mixed type |
| MN-40-G |
Measurement range |
Definition |
Output characteristics |
Supply voltage |
Absolute value type |
Dimensional drawing: there are two types of installation,the client could according to your
needs of choose and buy.
