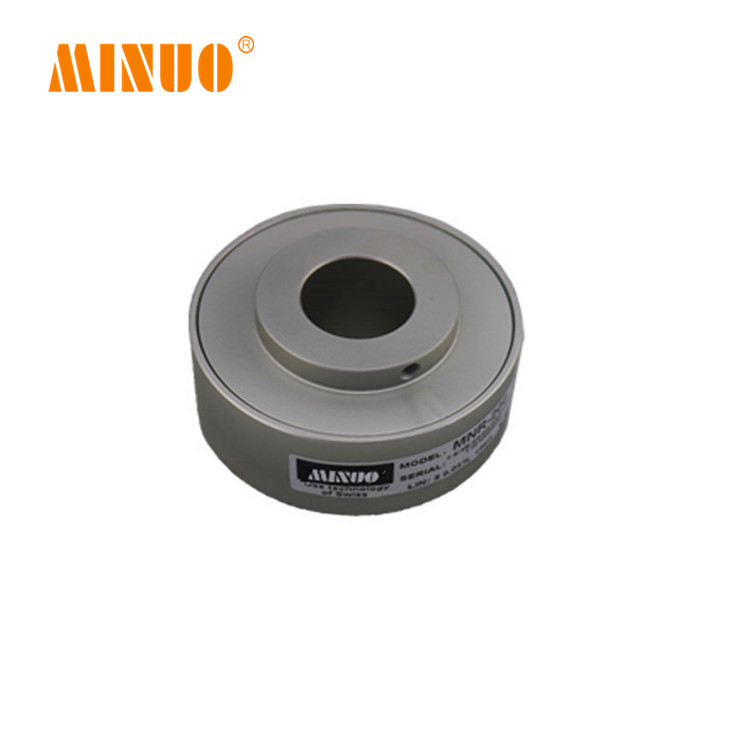

MNR-400  Potentiometer conductive plastic rotative

Applications   应用领域
Door control system  门控制系统
Road roller  压路机
Robot 机器人
Features  特性
Hollow shaft:Ø40mm     空心轴 :Ø40mm
5 Mio. Cycles   5百万转
Excellent linearity up to ±0.25%  极好的线性度 ±0.25%
Very good resolution,better 0.1°  非常好的分辨率,高于 0.1°
Options   选项
Resistance tolerance ±10%  阻值偏差±10%
Special electrical angles 特殊电气角度
Radial cable outlet   径向电缆出口
Continuous  连续性
Electrical data  电气参数   Unit 单位
Nominal resistance  标准阻值 5/10 kOhm
Resistance tolerance 阻值公差 ±20 %
Independent linearity 独立线性度 ±0.25 % of meas. range
Electrical angle 电气角度 150/340 °
Repeatability  重复性 max. 0.1 °
Temperature coefficient of the voltage divider分压器的温度系数 50 ppm/℃
Recommended wiper 3.7current 建议的电流 max. 1 μA
Max.wiper current in case of malfunction 最大电流 10 mA
Power rating p 额定功率P max. 0.5 w/40℃
Min. Life(electrical) 最小寿命(电气) 10 Mio. cycles

Mechanical Data 机械参数
Mechanical range  机械转角 350 °
Torque  转矩 max. 15 Ncm
Min.life(mechanical) 5 Mio. cycles
Operating temperature 工作温度 -25… +75
Storage temperature  储存温度 -25… +105
Protection class  防护等级 IP63

Standards  标准
Insulating resistance(500 VDC,1bar,2s) 绝缘电阻 10 GOhm
Dielectric strength(VAC,50Hz,1min,1bar)绝缘强度 1 kV
Vibration(Amax=0.75mm,f=30....500Hz) 振动 10 g
Shock  冲击 50 g
